AC Fans 6cm ~ 9cm

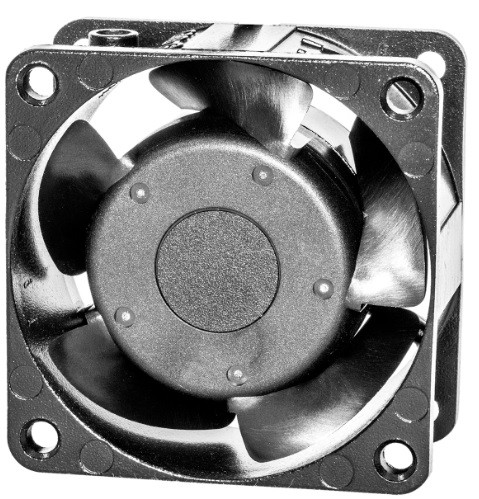

AA6030 SERIES
- Size: 60 x 60 x 30mm
- Housing: Aluminum
- Impeller: Glass fiber reinforced plastic UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- IP Rating: IP44
- Housing: Aluminum
- Impeller: Glass fiber reinforced plastic UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- IP Rating: IP44
Download PDF
AA6030 SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA6030V11BHLW |
115 |
50/60 |
0.042/0.035 |
5/4 |
2400/3000 |
8.0/10.20 |
1.8/2.8 |
27/28 |
|
AA6030V22BHLW |
230 |
50/60 |
0.04/0.032 |
5/4 |
2400/3000 |
8.0/10.20 |
1.8/2.8 |
27/28 |
