AC Fans 6cm ~ 9cm

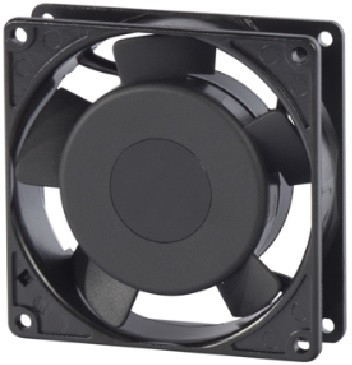

AA9225 SERIES

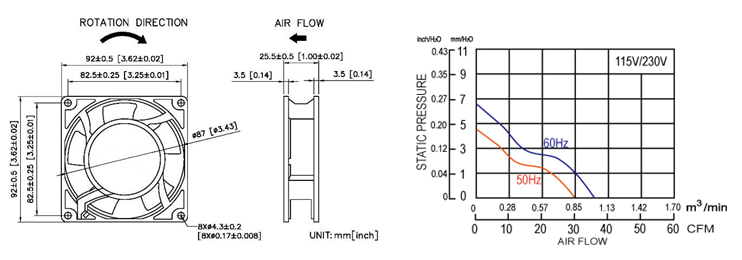

- Size: 90 x 90 x 25mm
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Housing: Aluminum
- Impeller: Thermoplastic PBT, UL94V-0
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
Download PDF
AA9225 SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA9225V11_H* |
115 |
50/60 |
0.14/0.11 |
11/9 |
2700/3100 |
30/36 |
4.57/6.60 |
40/45 |
|
AA9225V22_H* |
220 |
50/60 |
0.07/0.06 |
12/10 |
2700/3100 |
30/36 |
4.57/6.60 |
40/45 |
_ for B / S = Ball Bearing / Sleeve Bearing,
* for T/W = Terminals/ Lead Wires
