DC Fans 6cm ~9cm

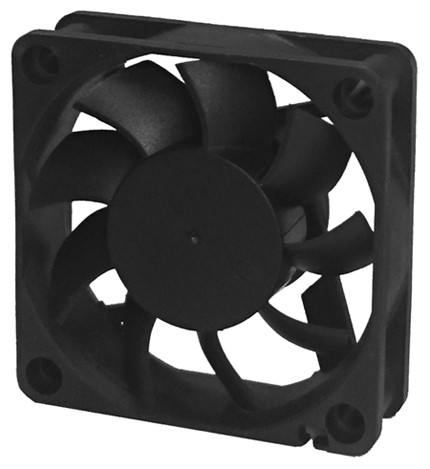

AD6015GE SERIES

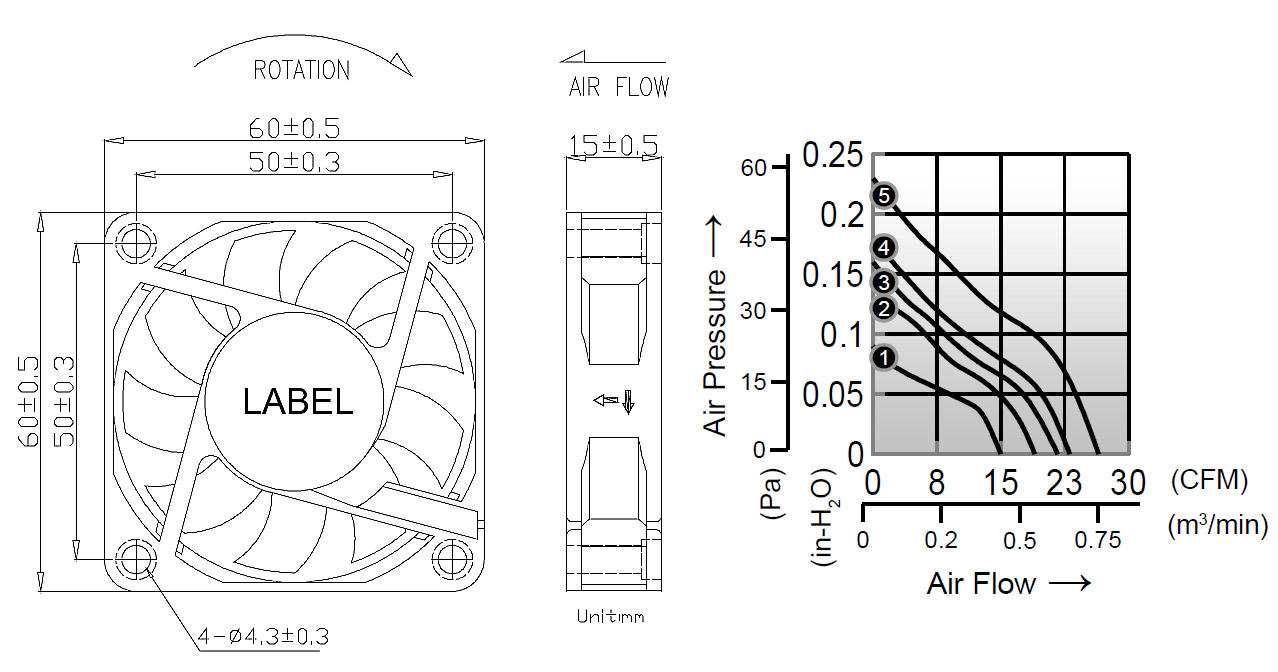

- Size: 60 x 60 x 15mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 44.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 44.0g
Download PDF
AD6015GE SERIES (2020)
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
① AD6015V12_JWGE |
12 |
0.06 |
0.72 |
3000 |
15.0 |
0.09 |
24 |
② AD6015V12_LWGE |
12 |
0.08 |
0.96 |
3500 |
19.0 |
0.14 |
29 |
② AD6015V24_LWGE |
24 |
0.08 |
1.92 |
3500 |
19.0 |
0.14 |
29 |
③ AD6015V12_MWGE |
12 |
0.10 |
1.20 |
4000 |
21.7 |
0.16 |
32 |
③ AD6015V24_MWGE |
24 |
0.07 |
1.68 |
4000 |
21.7 |
0.16 |
32 |
④ AD6015V12_HWGE |
12 |
0.12 |
1.44 |
4500 |
23.1 |
0.18 |
35 |
④ AD6015V24_HWGE |
24 |
0.08 |
1.92 |
4500 |
23.1 |
0.18 |
35 |
⑤ AD6015V12_UWGE |
12 |
0.17 |
2.04 |
5000 |
26.5 |
0.23 |
37 |
⑤ AD6015V24_UWGE |
24 |
0.11 |
2.64 |
5000 |
26.5 |
0.23 |
37 |
_ for B / F = Ball Bearing / Fluid Bearing
