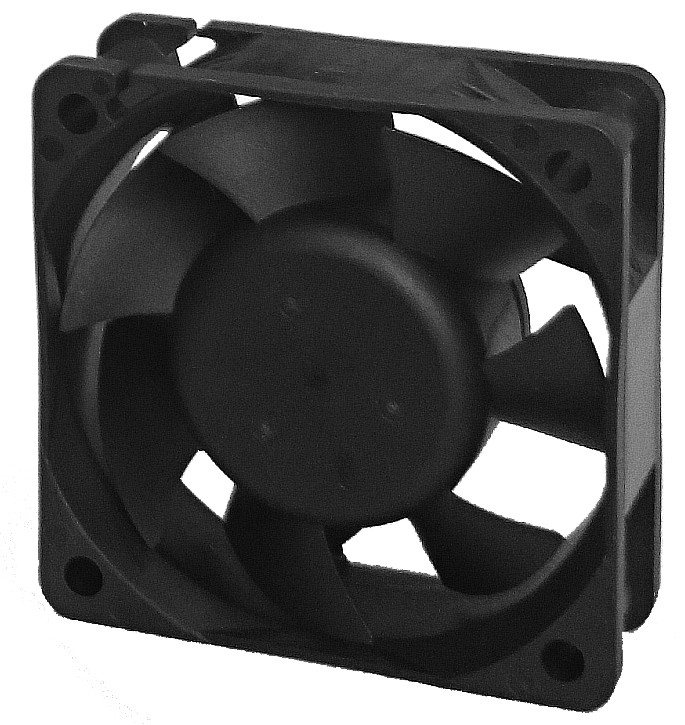

Products
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 60.0g
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD6025V12_JWGF |
12 |
0.08 |
0.96 |
3100 |
17.1 |
0.12 |
26 |
|
① AD6025V24_JWGF |
24 |
0.06 |
1.44 |
3100 |
17.1 |
0.12 |
26 |
|
② AD6025V12_LWGF |
12 |
0.12 |
1.44 |
3600 |
21.5 |
0.16 |
31 |
|
② AD6025V24_LWGF |
24 |
0.06 |
1.44 |
3600 |
21.5 |
0.16 |
31 |
|
③ AD6025V12_MWGF |
12 |
0.15 |
1.80 |
4250 |
24.0 |
0.22 |
34 |
|
③ AD6025V24_MWGF |
24 |
0.08 |
1.92 |
4250 |
24.0 |
0.22 |
34 |
|
③ AD6025V48_LWGF |
48 |
0.06 |
2.88 |
4250 |
24.0 |
0.22 |
34 |
|
④ AD6025V12_HWGF |
12 |
0.28 |
3.36 |
5000 |
33.6 |
0.25 |
40 |
|
④ AD6025V24_HWGF |
24 |
0.16 |
3.84 |
5000 |
33.6 |
0.25 |
40 |
|
④ AD6025V48_MWGF |
48 |
0.10 |
4.80 |
5000 |
33.6 |
0.25 |
40 |
|
⑤ AD6025V12BUWGF |
12 |
0.45 |
5.40 |
6800 |
43.8 |
0.56 |
56 |
|
⑤ AD6025V24BUWGF |
24 |
0.28 |
6.72 |
6800 |
43.8 |
0.56 |
56 |
|
⑤ AD6025V48BHWGF |
48 |
0.17 |
8.16 |
6800 |
43.8 |
0.56 |
56 |
|
⑥ AD6025V12BVWGF |
12 |
0.48 |
5.76 |
7500 |
47.9 |
0.79 |
63 |
|
⑦ AD6025V12BWWGF |
12 |
0.54 |
6.48 |
9800 |
55.5 |
1.17 |
66 |
_ for B / S = Ball Bearing / Sleeve Bearing
