DC Fans 6cm ~9cm

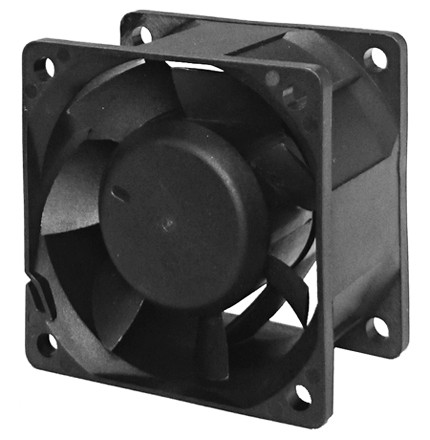

AD6038GB SERIES

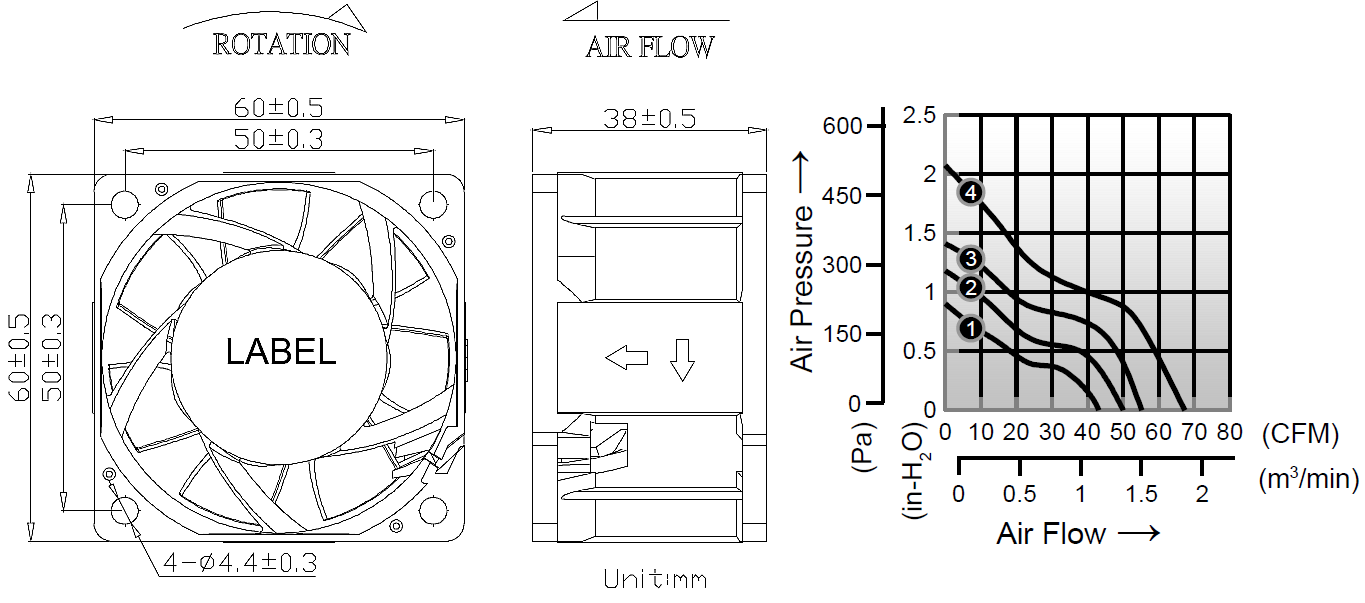

- Size: 60 x 60 x 38mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 145.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 145.0g
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD6038V12BIWGB |
12 |
0.52 |
6.24 |
8000 |
43.1 |
0.90 |
51 |
|
① AD6038V24BLWGB |
24 |
0.22 |
5.28 |
8000 |
43.1 |
0.90 |
51 |
|
② AD6038V12BJWGB |
12 |
0.68 |
8.16 |
9000 |
50.8 |
1.19 |
54 |
|
② AD6038V24BMWGB |
24 |
0.40 |
9.60 |
9000 |
50.8 |
1.19 |
54 |
|
③ AD6038V12BLWGB |
12 |
1.00 |
12.00 |
10000 |
55.2 |
1.41 |
57 |
|
③ AD6038V24BHWGB |
24 |
0.53 |
12.72 |
10000 |
55.2 |
1.41 |
57 |
|
④ AD6038V12BMWGB |
12 |
1.38 |
16.56 |
12000 |
67.3 |
2.07 |
62 |
|
④ AD6038V24BUWGB |
24 |
0.75 |
18.00 |
12000 |
67.3 |
2.07 |
62 |
