DC Fans 6cm ~9cm

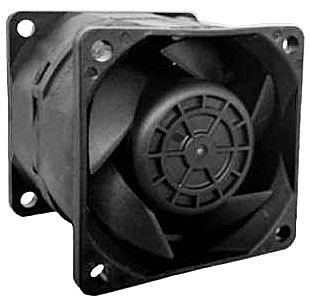

AD6056GB SERIES

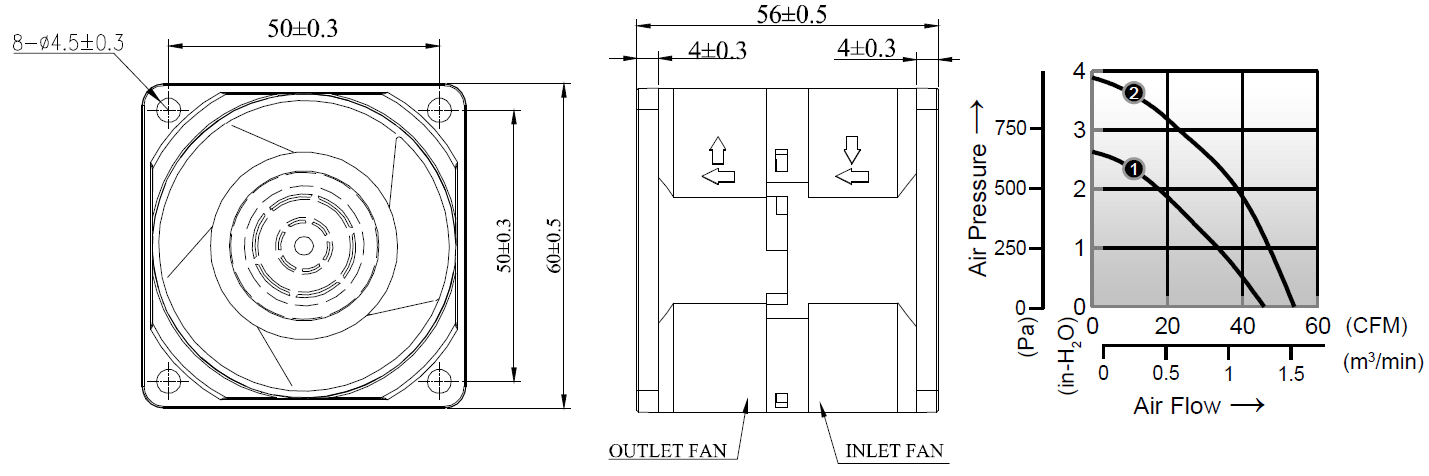

- Size: 60 x 60 x 56mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 180.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 180.0g
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
① AD6056V12BHWGB |
12 |
1.00 |
12.0 |
12500 |
45.76 |
2.63 |
63 |
14500 |
|||||||
① AD6056V12BHWGB |
12 |
1.45 |
17.4 |
15200 |
53.82 |
3.89 |
63 |
17000 |
|
