DC Blowers
BD5015GE SERIES

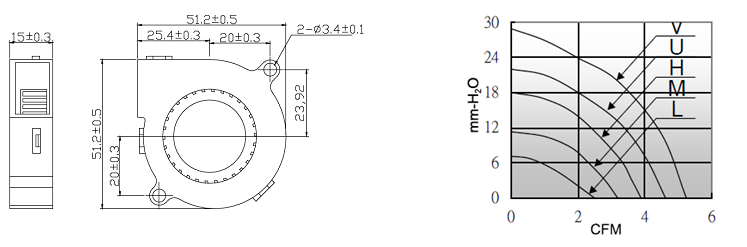

- Size: 50 x 50 x 15mm
- Housing: Plastic
- Impeller: Plastic
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 28g
- Housing: Plastic
- Impeller: Plastic
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 28g
Download PDF
BD5015GE SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
BD5015V05_LWGE |
5 |
0.09 |
0.45 |
3500 |
2.48 |
7.0 |
27.0 |
|
BD5015V12_LWGE |
12 |
0.06 |
0.72 |
3500 |
2.48 |
7.0 |
27.0 |
|
BD5015V05_MWGE |
5 |
0.12 |
0.60 |
4500 |
3.18 |
11.2 |
32.5 |
|
BD5015V12_MWGE |
12 |
0.07 |
0.84 |
4500 |
3.18 |
11.2 |
32.5 |
|
BD5015V24_MWGE |
24 |
0.05 |
1.20 |
4500 |
3.18 |
11.2 |
32.5 |
|
BD5015V05_HWGE |
5 |
0.18 |
0.90 |
5500 |
3.56 |
14.1 |
37.2 |
|
BD5015V12_HWGE |
12 |
0.09 |
1.08 |
5500 |
3.56 |
14.1 |
37.2 |
|
BD5015V24_LWGE |
24 |
0.07 |
1.68 |
5500 |
3.56 |
14.1 |
37.2 |
|
BD5015V12_UWGE |
12 |
0.15 |
1.80 |
6500 |
4.60 |
22.0 |
45.3 |
|
BD5015V24_UWGE |
24 |
0.12 |
2.88 |
6500 |
4.60 |
22.0 |
45.3 |
|
BD5015V12_VWGE |
12 |
0.21 |
2.52 |
7500 |
5.25 |
29.7 |
48.5 |
|
BD5015V24_VWGE |
24 |
0.15 |
3.60 |
7500 |
5.25 |
29.7 |
48.5 |
_ for B / S = Ball Bearing / Sleeve Bearing
