AC Fans 6cm ~ 9cm

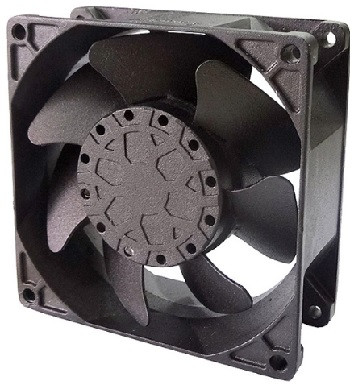

AA9238M9L SERIES

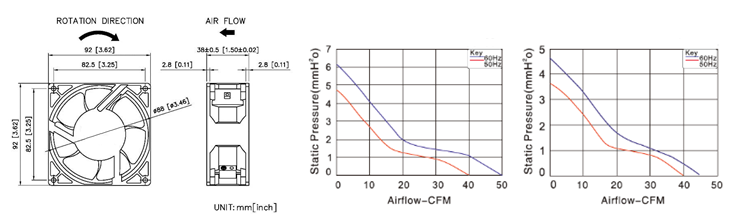

- Size: 90 x 90 x 38mm
- Housing: Aluminum
- Impeller: Metal
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Housing: Aluminum
- Impeller: Metal
- Motor: AC Shaded Pole Type
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
Download PDF
AA9238M9L SERIES (2020)
|
Model Number |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
AA9238V11MSH*9L |
100/125 |
50/60 |
0.23/0.18 |
17/13 |
2350/2750 |
39/46 |
7.4/5.9 |
26/31 |
|
AA9238V22MSH*9L |
200/240 |
50/60 |
0.06/0.05 |
10/8 |
2350/2750 |
39/46 |
7..4/5.9 |
26/31 |
|
AA9238V11MBH*9L |
100/125 |
50/60 |
0.23/0.18 |
17/13 |
2350/2750 |
39/46 |
7.4/5.9 |
26/31 |
|
AA9238V22MBH*9L |
200/240 |
50/60 |
0.06/0.05 |
10/8 |
2350/2750 |
39/46 |
7..4/5.9 |
26/31 |
|
AA9238V11MSM*9L |
100/125 |
50/60 |
0.12/0.09 |
9/7 |
2250/2600 |
38/44 |
4.0/5.0 |
26/31 |
|
AA9238V22MSM*9L |
200/240 |
50/60 |
0.07/0.06 |
11/8 |
2250/2600 |
38/44 |
4.0/5.0 |
26/31 |
|
AA9238V11MBM*9L |
100/125 |
50/60 |
0.12/0.09 |
9/7 |
2250/2600 |
38/44 |
4.0/5.0 |
26/31 |
|
AA9238V22MBM*9L |
200/240 |
50/60 |
0.07/0.06 |
11/8 |
2250/2600 |
38/44 |
4.0/5.0 |
26/31 |
_ for B / S = Ball Bearing / Sleeve Bearing,
* for T/W = Terminals/ Lead Wires
