DC Fans 2cm ~5cm
AD3010GE SERIES

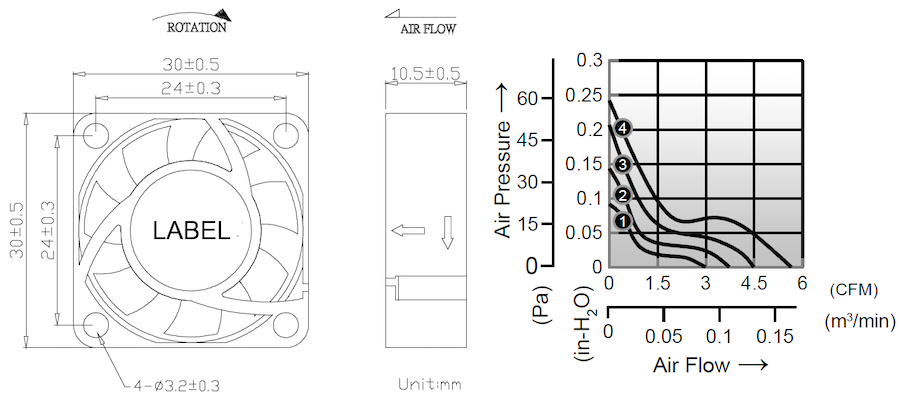

- Size: 30 x 30 x 10mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 10.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 10.0g
Download PDF
AD3010GE SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD3010V05_LWGE |
5 |
0.09 |
0.45 |
6000 |
2.99 |
0.09 |
17 |
|
① AD3010V12_LWGE |
12 |
0.03 |
0.36 |
6000 |
2.99 |
0.09 |
17 |
|
② AD3010V05_MWGE |
5 |
0.12 |
0.60 |
7500 |
3.73 |
0.14 |
24 |
|
② AD3010V12_MWGE |
12 |
0.05 |
0.60 |
7500 |
3.73 |
0.14 |
24 |
|
③ AD3010V05_HWGE |
5 |
0.24 |
1.20 |
9000 |
4.48 |
0.21 |
29 |
|
③ AD3010V12_HWGE |
12 |
0.07 |
0.84 |
9000 |
4.48 |
0.21 |
29 |
|
④ AD3010V05_UWGE |
5 |
0.27 |
1.35 |
11000 |
5.65 |
0.24 |
31 |
|
④ AD3010V12_UWGE |
12 |
0.09 |
1.08 |
11000 |
5.65 |
0.24 |
31 |
_ for B / F = Ball Bearing / Fluid Bearing
