EC Centrifugal Fans
CFE22590 SERIES

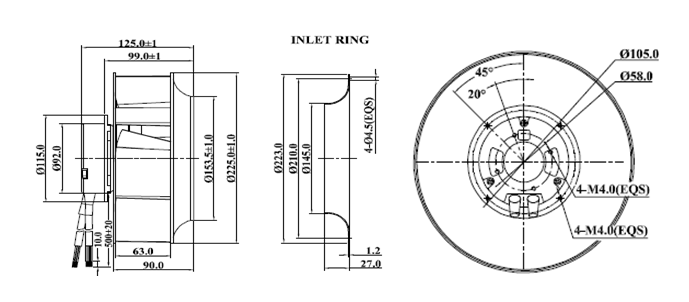

- Size: Ø225 X 90mm
- Impeller: Plastic PP
- Motor: EC Brushless External Rotor Motor
- Insulation: Class B
- Technical Features: Control input 0-10VDC/PWM, Tach output, Locked rotor protection, reverse polarity, Current limited, soft start
- Weight: 1.50kg
- Impeller: Plastic PP
- Motor: EC Brushless External Rotor Motor
- Insulation: Class B
- Technical Features: Control input 0-10VDC/PWM, Tach output, Locked rotor protection, reverse polarity, Current limited, soft start
- Weight: 1.50kg
Download PDF
CFE22590 Series
|
Model Number |
Voltage |
Operating Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
CFE25590V11BMWPB |
115 |
92 ~ 132 |
1.5 |
85 |
2500 |
636.9 |
43.3 |
67 |
|
CFE25590V22BMWPB |
230 |
184 ~ 265 |
0.75 |
85 |
2500 |
636.9 |
43.3 |
67 |
